When I was reviewing the software GPIO interface for Raspberry Pi, on second thought, I realized that if my 8-pin connector doesn’t have the GPIO pins selected so that all bits are continuous, I am going to have a tremendous performance loss by trying to rearrange bits in software, rather than simply being able to copy one byte and shift it around. So, let’s double-check. Where are the holes in my otherwise continuous range of GPIO pins on the 8-pin connector?
8-bit Pin 07, 13, 15, 16, 18, 22, 29, 31
GPIO 04, 27, 22, 23, 24, 25, 05, 06
GPIO 04, 05, 06, 22, 23, 24, 25, 27
X X
Okay, that was a fail in being a continous range. Let’s try again, trying to straighten up the holes in our nearly continuous range as much as possible.
Unfortunately, it appears the verdict is clear. To get ideal software alignment, I would have to forfeit part of either SPI0 or SPI1, in effect rendering it just another collection of GPIO pins. Also, it looks like I might need to forfeit I2S. So, let’s sample a layout that forfeits SPI1 and the I2S DATA pin.
8-bit Pin 38, 40, 15, 16, 18, 22, 37, 13
GPIO 20, 21, 22, 23, 24, 25, 26, 27
SP IS SP
Well, at least the hardware PWM pins are still free.
Now, with that rearrangement and consideration, I better seriously consider the actual software GPIO numbers for the other pins and connectors. Lucky for me, nearly all the remaining connectors are for special-purpose hardware inside the chip, so there is not as much room for design error on my part. That leaves only the 8-bit bus, the remaining I2S pins, and the “remaining” SPI1 pins to be rearranged to correspond with software GPIO order. I know, now we’re talking longer wires, but this is an important modification if only for the sake of performance.
Double-down on checking.
I2S Pin 12, 35, 39, 40
GPIO 18, 19, GD, 21
XX
SPI1 Pin 11, 36, 37, 38
GPIO 17, 16, 26, 20
XX XX
SPI1 GPIO 16, 17, 20, 26
XX XX
Okay, so it looks like my verdict, in the interest of optimizing for a parallel port, will be to mix and match a 4-pin port out of this, and be left with 3 remaining pins.
CTL GPIO 16, 17, 18, 19
The SPI0 port provides the remaining 5-pin header for status.
STAT Pin 17, 19, 20, 21, 23, 24, 26
GPIO GD, 10, 5V, 09, 11, 08, 07
STAT GPIO GD, 5V, 07, 08, 09, 10, 11
And there is still room for improvement. If this 8-pin bus was aligned to the byte boundary, the data could be read/written even faster. What’s stopping me? Nothing, now that I’ve officially decided to veto support for SPI1 and I2S. So, here’s yet another revision.
8-bit Pin 36, 11, 12, 35, 38, 40, 15, 16
GPIO 16, 17, 18, 19, 20, 21, 22, 23
SPI0 Pin 17, 20, 26, 24, 21, 19, 23
STAT GPIO GD, 5V, 07, 08, 09, 10, 11
CTL Pin 18, 22, 37, 13
GPIO 24, 25, 26, 27
REM Pin 39, 07, 29, 31
GPIO GD, 04, 05, 06
PWM Pin 32, 33
GPIO 12, 13
UART Pin 06, 04, 08, 10
GPIO GD, 5V, 14, 15
I2C Pin 27, 28, 03, 05
GPIO 00, 01, 02, 03
Two of the remainder pins can be used for the parallel port direction pins.
Well, I must say, this is a pretty tight layout. I literally use up all available GPIO pins on the Raspberry Pi Zero with this specification. Notably, I2S and SPI1 (an AUX device) had to get the boot to software optimize the 8-pin and 4-pin GPIO headers. I think this is a good trade-off for most projects, as I2S has some noted problems and not many projects need more than one SPI interface.

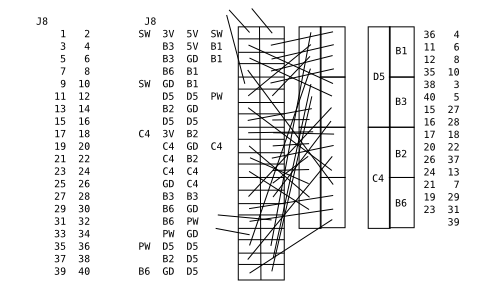

Wow, that really looks like a mess. I’ve reorganized the ordering of the software critical GPIO pin headers (8-bit, SPI0, CTL, REM), but otherwise left the other headers (PWM, UART, I2C) wired up largely the same. I don’t know if there is a standard pin ordereing for modular connectors on these interfaces. I guess the standard is you have some breakout pins that you wire up any which way works.
